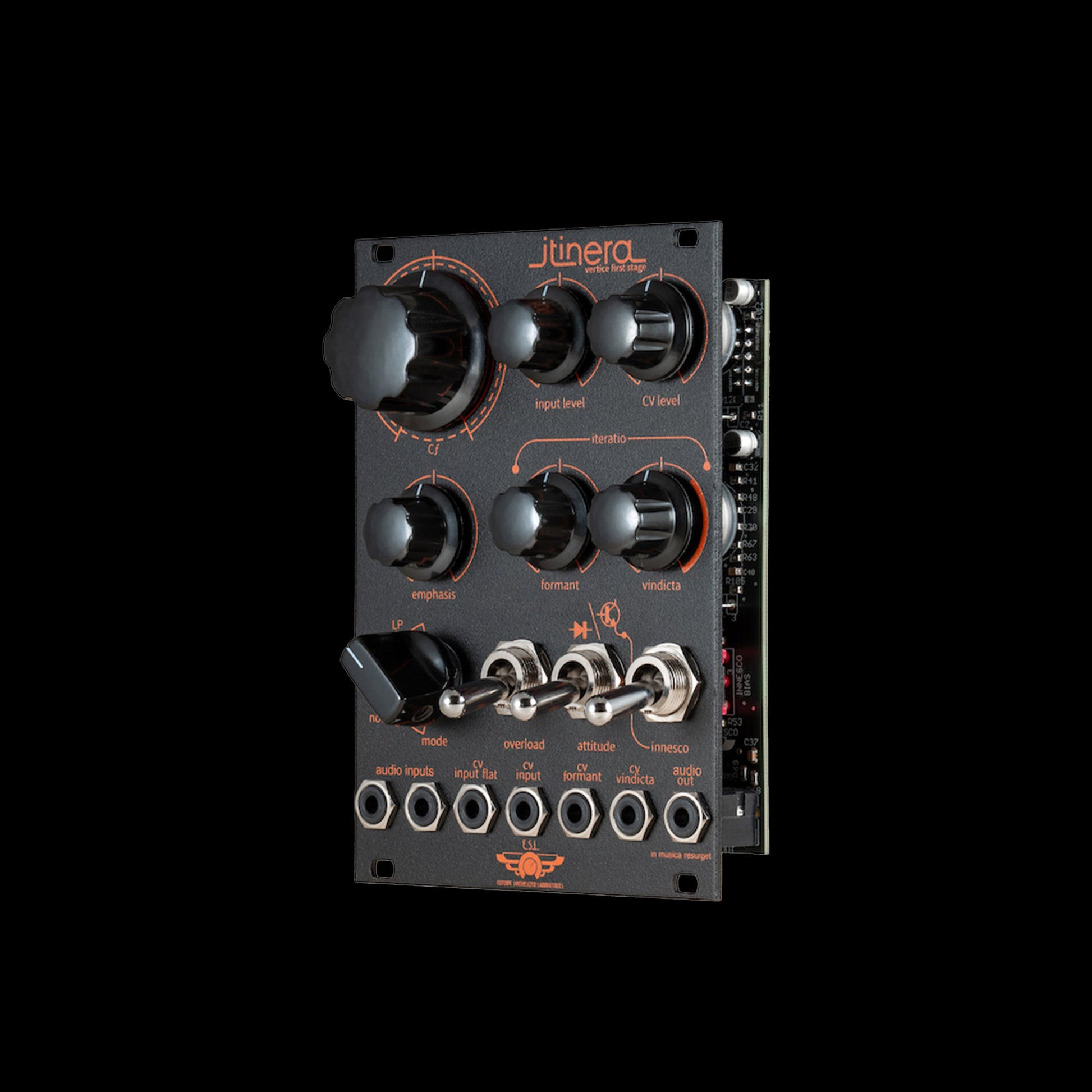

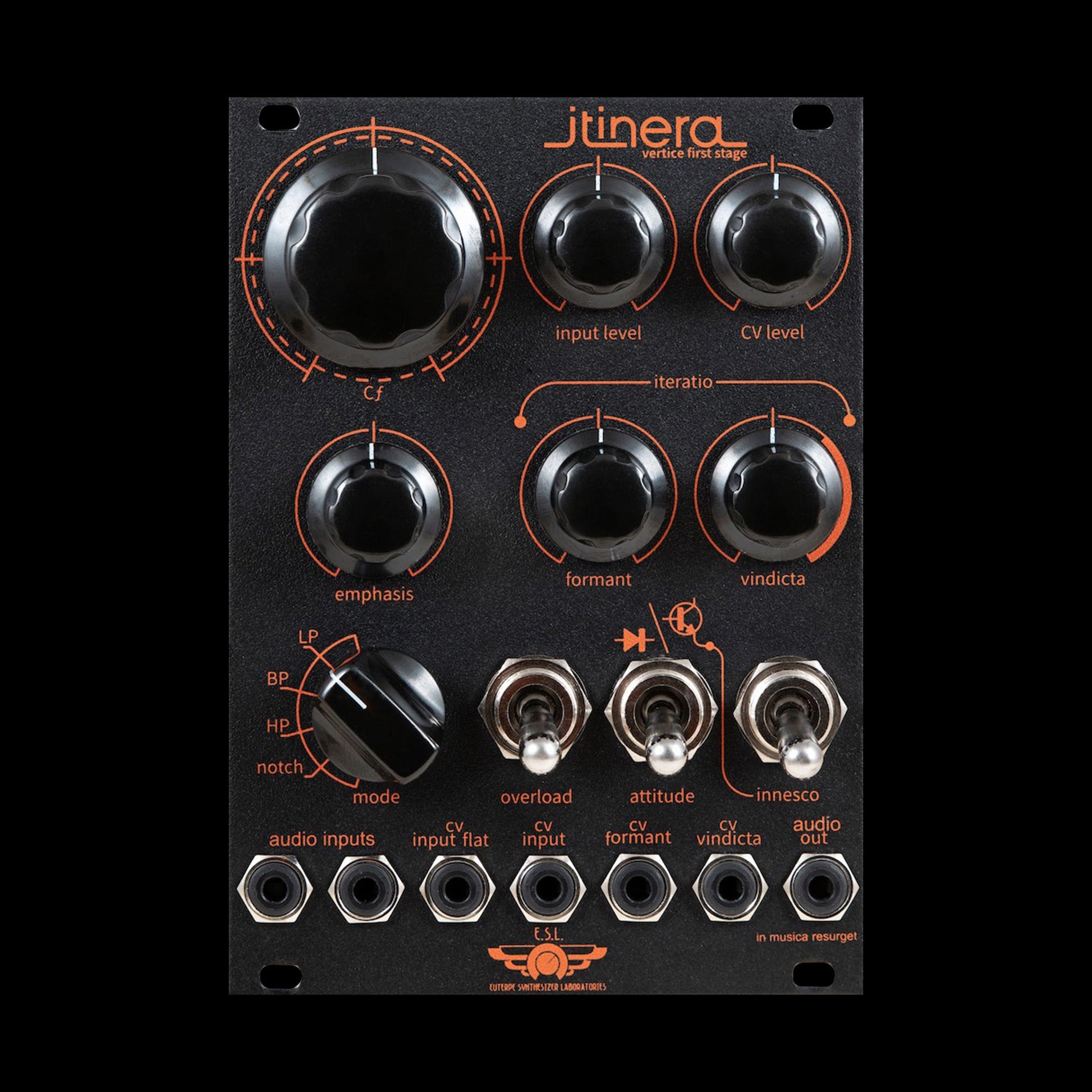

Euterpe - Itinera Analog Filter Prima

Euterpe - Itinera [Vertice First Stage]

Since 2014 Euterpe Synthesizer Laboratories has been on a dedicated quest to create a filter that exceeds all expectations and redefines what a VCF can be.

Current serial numbers: 58-63

One astonishing VCF from 1974 meets a robust preamplifier section, one transistor distortion and a rich set of the most unusual timbre-making functionalities. All analog in its purest form.

• Itinera is an unusually unique multimode filter derived from the first channel of the Euterpe Vertice Seconda Serie Analog Filterbank.
  It hosts:
• 4 Modes (LP BP HP Notch)
• 3 Resonance different paths (Diode, Transistor, Innesco)
• 2 Heavy CV-controllable Feedback functions (Formant, Vindicta)
• 1 Preamplifier
• 1 Transistor Distortion
• 2 Audio IN
• 2 CV Input (one attenuable)


– total weight: 260g

– faceplate dimesions: 3U x 18hp

– deep: 22mm

– power consumption: 10mA @ 12V, 0mA @ 5V

– pwr supply range: +/-12V standard Eurorack – RED STRIPE DOWN
