Flame - Memoslider

Programmable Slider Step sequencer CV source

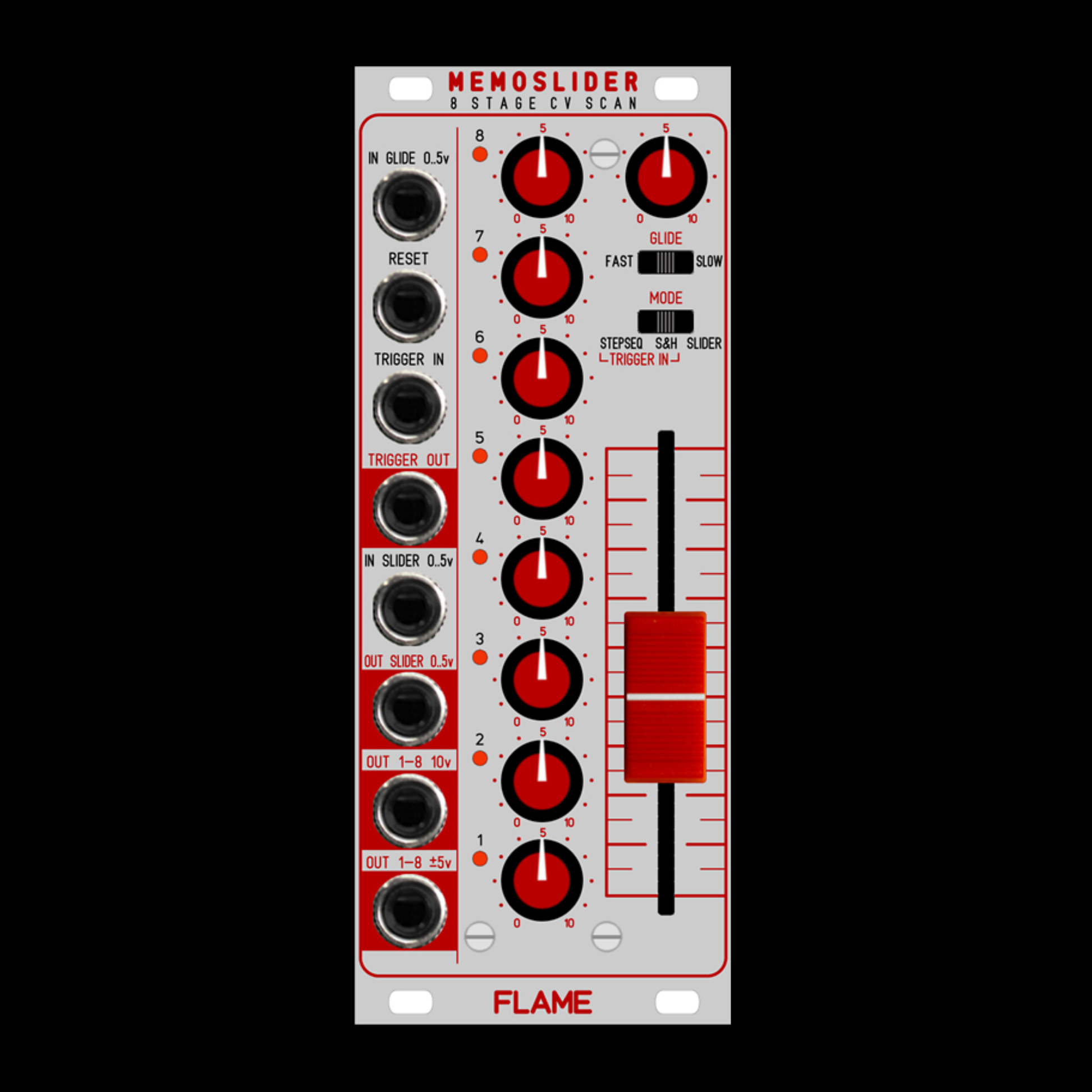

The Flame "MEMOSLIDER” module is a small programmable analogue slider module, designed for small mobile euro racks.

There are three play modes.
SLIDER: for manual selection of one of the eight steps
SAMPLE AND HOLD: for synchronized selection of one of the eight steps
STEPSEQUENCER: like an analogue stepsequencer

Two seperately different output voltages of the pots 1-8 are available: unipolar 0..+10v and bipolar -5..+5v
Additional the direct slider voltage input and output (0..+5v) is available.
The module has a GLIDE function (manually via pot or via external CV).

It's possible to link several modules like an multi track sequencer or to connect several modules in parallel.
