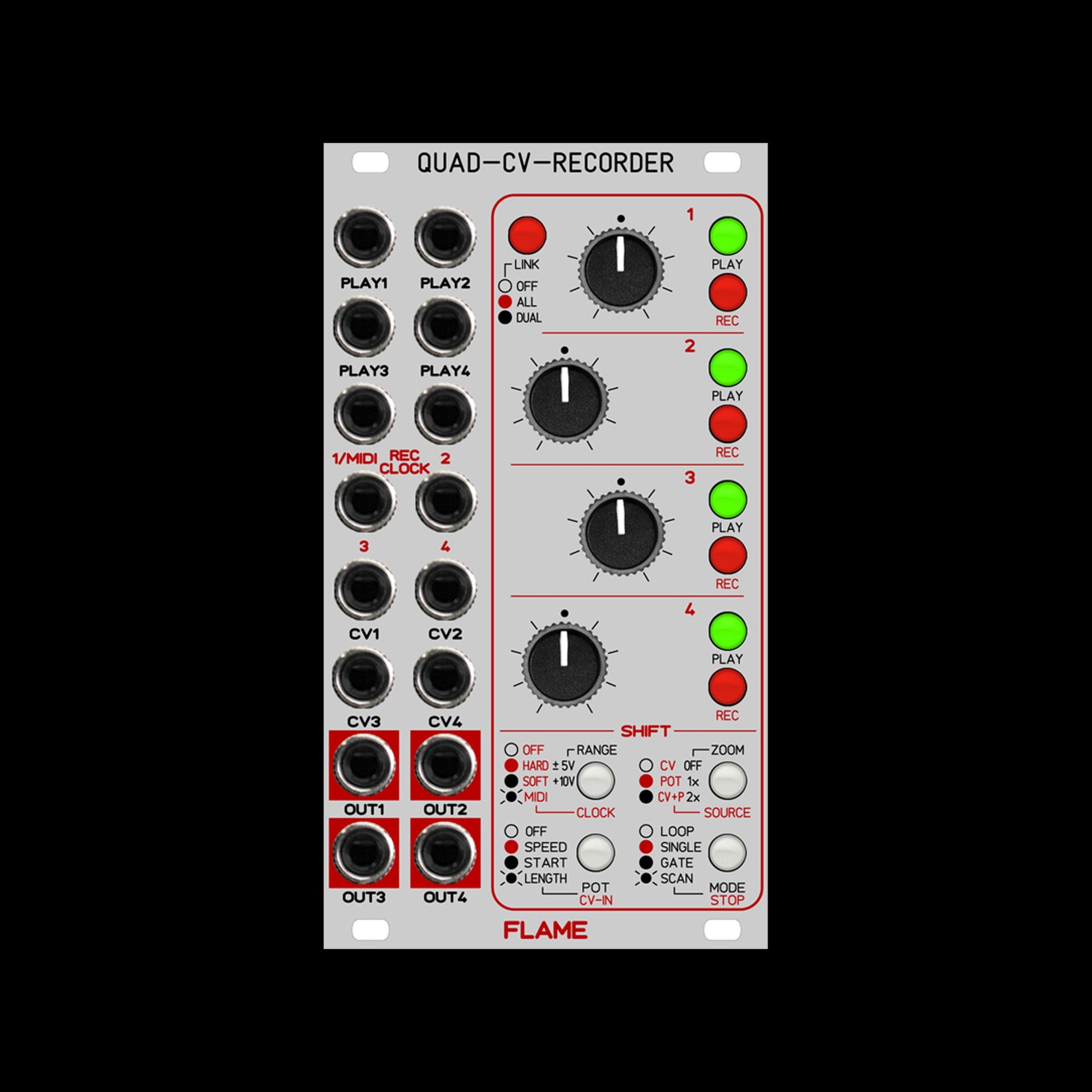

Flame - Quad CV Recorder

4-channel CV recorder, Looper, LOFI-Sampler

Four-channel CV recorder/looper that records and plays back voltage curves from very slow speeds to faster speeds by moving the controllers. You can record control voltage courses from analogue sequencers, LFOs, envelope generators, joysticks etc.

• 4 independent Tracks, linkable: All=Multitrack, Dual=Joystick recording
• Complete voltage controllable
• Play modes: Loop, Single, Gate, Scan
• Loop control: Speed, Sample Start/Length
• Loop Speed quantize function
• Manual playback - track velocity, direction (reverse, randomized, stuttering)
• Selectable input/output CV range (+/-5v or 0..+9v)
• Trigger/gate/clock input (0/+5v)
• Sync per Trigger clock or MiIDI (two levels - HARD & SOFT)
• ZOOM - two stage fine adjust function of the control ruler
• Record time up to 60 minutes (per Track)
• Outputs smoothed voltage without audible increments (16 bit resolution)
• LOFI Sample option (max. 5Khz)
• Battery buffered memory
• Comes with MIDI adapter cable (DIN to 1/4inch stereo jack)
• Firmware update per MIDI SysEx dump
