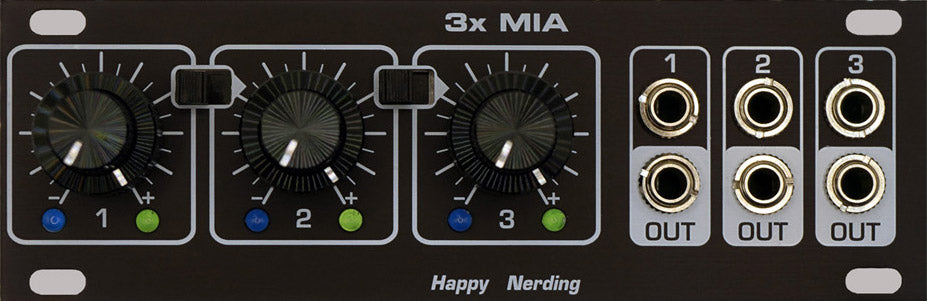

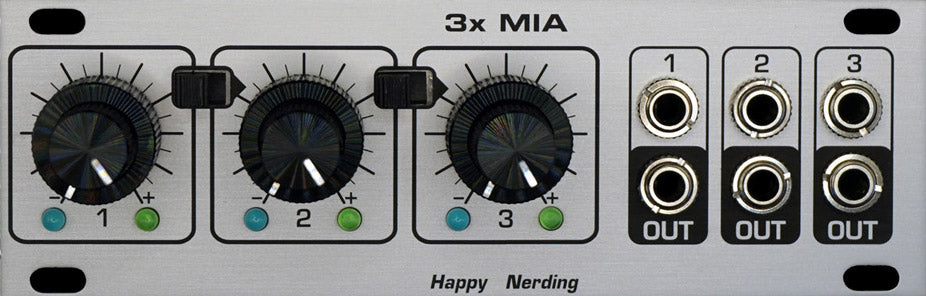

Happy Nerding - 3x MIA 1U

3x mia is a 6-channel attenuverting mixer/offset/scale/polarizer. 3 blocks of 2-channel attenuverting mixers, using dual concentric pots. each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations. with nothing plugged into an input, an offset is normalled to that channel. the inner knobs control the a inputs, while the outer knobs control the b inputs. dc coupled, so it can be used for audio, cv, or both at the same time.

specifications:
80 ma ±12v
35 mm depth
