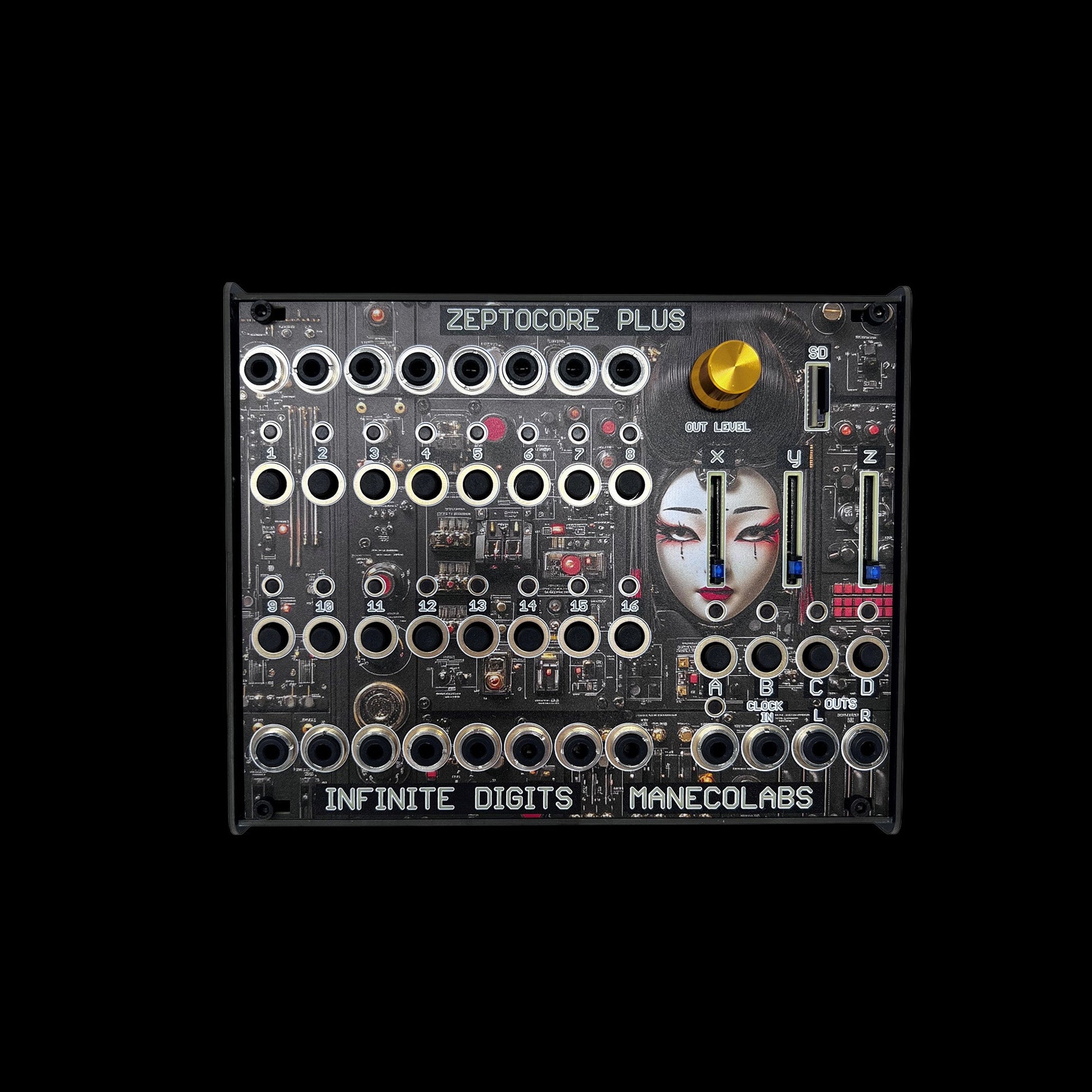

Maneco Labs - Zeptomod Plus [Desktop]

PSU REQUIRED: 9V Center Negative [standard guitar pedal power]

Zeptomod Plus is an expanded version of the Zeptomod module , a eurorack family of our take on the Zeptocore device by Infinite Digits.

An extensive guide is available at www.zeptocore.com Online tool for preparing samples and loops for loading on SD card is found at https://zeptocore.com/tool .

Sample tool can also be downloaded and installed locally on Windows, Mac and Linux : https://github.com/schollz/_core?tab=readme-ov-file#ectocorerocks-offlin e-usage

Everything works exactly the same as in Zeptomod, with added trigger inputs for the 16 buttons, and Knobs X, Y and Z are upgraded with sliders. There is also a master output level as a final control.

All levels are Eurorack compatible.

A, B, C, D are "shift" keys that access a number of features with the sliders:

● tempo: hold A & turn slider X

● pitch: hold A & turn slider Y

● volume: hold A & turn slider Z

● sequencer: hold B & turn slider X

● filter: hold B & turn slider Y

● sample: hold C & turn slider X

● tunnel %: hold C & turn slider Y

● jump %: hold D & turn slider X

● fx %: hold D & turn slider Y

● fx bank: hold D & turn slider Z

hold A and press [1-16] to toggle any of the sixteen effects:

● saturation

● loss

● fuzz

● bitcrush

● timestretch

● delay

● comb

● repeat

● gate

● reverb

● autopan

● scratch

● filter

● pitch

● reverse

● tapestop

Press [1-16] to jump to a slice.Also can be triggered by 16 inputs .

hold [1-16] and press [1-16] to retrigger a slice.

The SD card holds up to 32 gigabytes of samples (maximum 256) in 16 banks. goto zeptocore.com/tool to load your samples.
