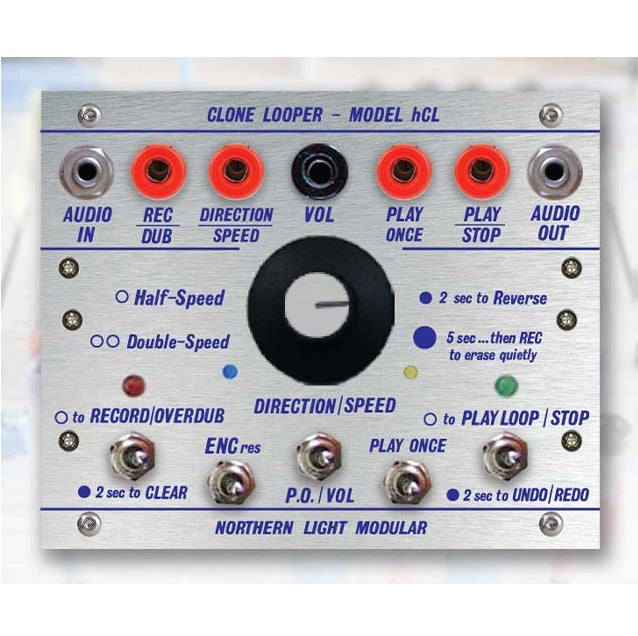

NLM - hCL [Clone Looper]

Looper Effects Pedal Conversion based on the MXR M303

• Up to 6 minutes of recording time
• Stores recorded loops even when the pedal is off
• Unlimited overdubs
• Sampling rate: 44.1 kHz
• Storage sample rates up to 88.2 kHz
• True/Buffered bypass (switchable)
• CV control for : Change the speed of recorded loops to double-speed or half-speed, or reversing them
• CV control for : Volume control
• CV control for : REC/DUB
• CV control for : PLAY/STOP
• CV control for : PLAY LOOP ONCE (and retrigger)
• Big knob functionality: 1x tap for loop speed, 3 sec tap loop forward/backward and 5 sec + REC for clear loop quietly
• Power consumption: 225 mA !

The h series modules require a h bracket to be mounted in a 1U space
