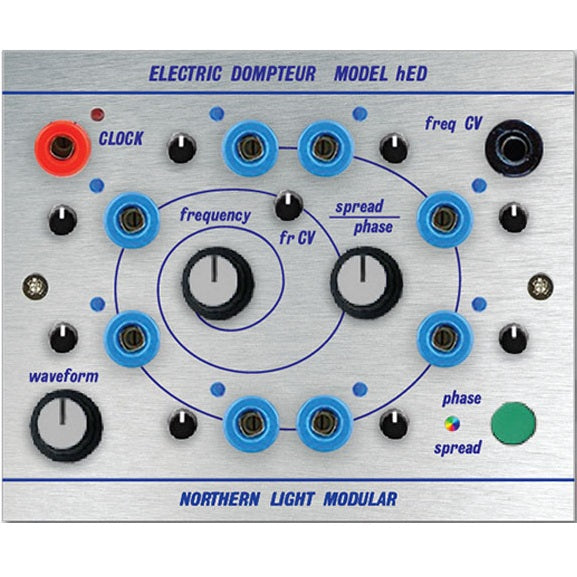

NLM Electric Dompteur – Model hED v2 [H-Module]

Northern Light Modular!

8 linked true zero LFOs
Sine, triangle, rising and falling ramps , square , pulsing and frozen random available

V2 offers new Midi clock sync multipliers and a MCU controlled phase/spread button

Offset in phase up to 180 degree
Offset in spread based on sub harmonics of the master frequency
Frequency range from 0 to 300 hz
8 Outputs can be adjusted from 0-10V individually
Cv controlled frequency up to 2x and down to 0hz

The h series modules require a h bracket to be mounted in a 1U space
