Pittsburgh Modular - Cell 90 [NOS]

New Old Stock

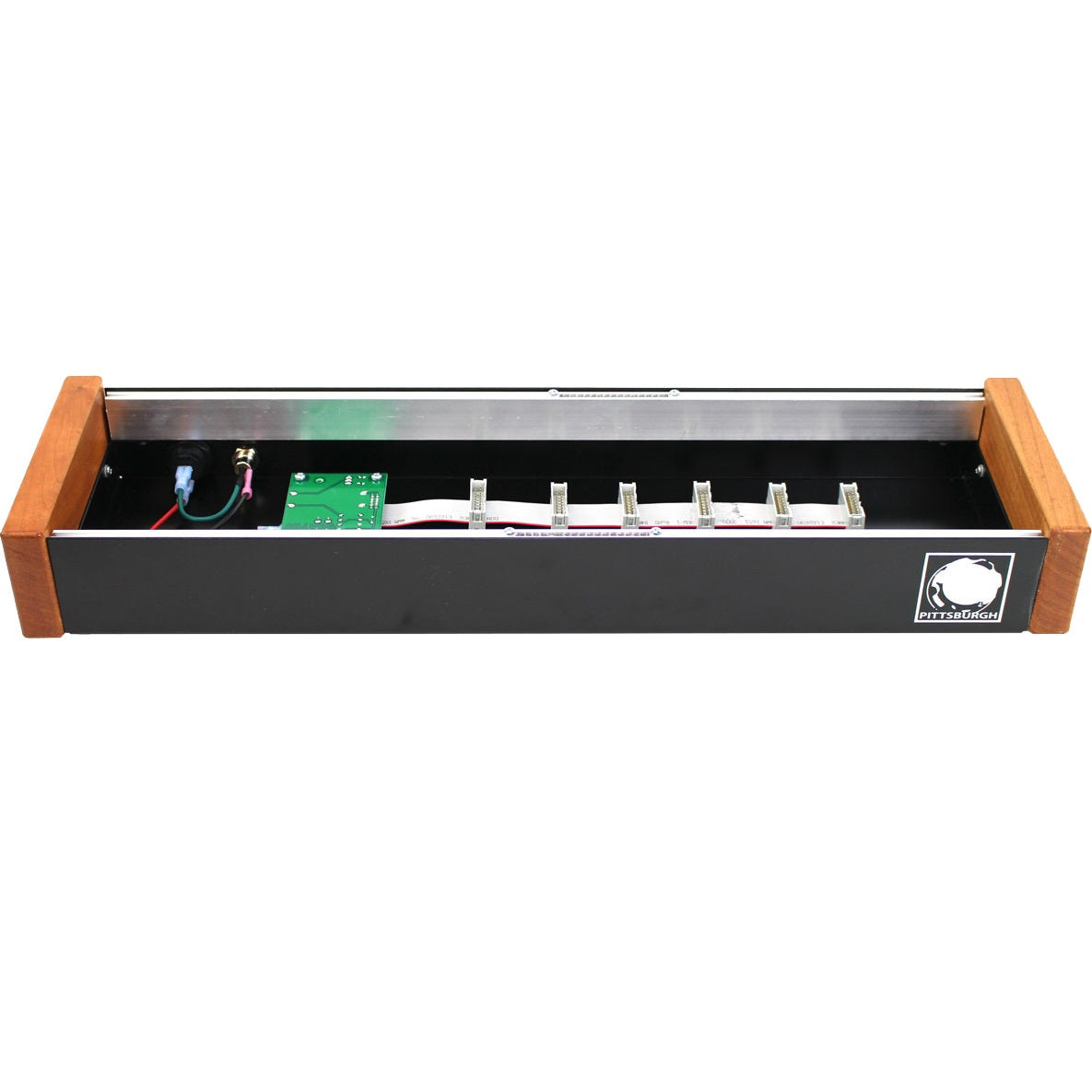

the pittsburgh modular cell 90 is an expandable, desktop eurorack case and power supply. a custom designed, heavy duty steel frame matched with replaceable pennsylvania cherry hardwood sides. the desktop cases are available in single and double row configurations. frames and wood sides are available separately to allow for easy expandability and customizing.

cell 90 specs:
width: 456mm (90hp)
available depth for modules: 52mm
available depth for modules (above power supply): 36mm
18 sliding nuts per rail supports up to 18 modules
40 (4-40 size) panel screws included
power: 850ma linear supply
12vac 2.0a ac power adapter
custom flexible power rail with 17 power headers
heavy 16 gauge steel
hand crafted pennsylvania cherry hardwood sides
rear mounted on/off switch
rear mounted 2.1mm universal power adapter jack
+5v adapter compatible
eurorack bus compatible
